FAM-Ahx-NYAD-1 (NYAD-2)
Antiviral Peptides
FAM-Ahx-NYAD-1 (NYAD-2) is a FAM-labeled (Ex/Em = 495/520 nm) cell-penetrating α-helical peptide developed as a potential HIV-1 inhibitor. The hydrocarbon staple stabilizes the α-helical conformation and enhances structural rigidity. To preserve these properties, the FAM label is attached via an Ahx spacer (6-aminohexanoic acid, CAS: 60-32-2). This flexible linker reduces steric interference between the fluorophore and the peptide backbone, ensuring optimal binding and accurate cellular imaging.
Disease Target
Targets HIV-1 infection (AIDS) by disrupting viral capsid assembly. This FAM-labeled analog enables cellular uptake and intracellular tracking while retaining inhibitory activity against HIV-1 capsid formation.
Stapling Strategy

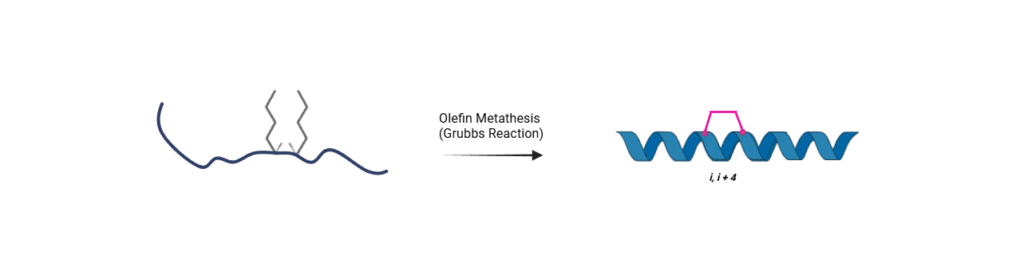

FAM-Ahx-NYAD-1 (NYAD-2) is synthesized by incorporating Fmoc-(S)-2-(4-pentenyl)alanine (Fmoc-(S5)-OH, CAS: 288617-73-2) at the i,i+4 positions within the CAI-derived sequence during solid-phase peptide synthesis (SPPS). The stapled structure is generated via ruthenium-catalyzed ring-closing olefin metathesis, forming a hydrocarbon constraint that stabilizes the α-helical conformation. An N-terminal FAM label (Ex/Em = 495/520 nm) is introduced through an Ahx spacer, using 6-aminohexanoic acid (Ahx, CAS: 60-32-2) as a flexible linker to separate the fluorophore from the peptide backbone, thereby reducing potential steric interference and preserving the peptide’s binding and conformational properties. This design enables fluorescence-based cellular imaging and uptake studies.
Technical specification
 |
Sequency : | FAM-Ahx-ITF(S5)DLL(S5)YYGP-NH2 |
 |
MW : | 1950.23 g/mol |
 |
Purity : | > 95% |
 |
Counter-Ion : | TFA Salts |
 |
Delivery format : | Lyophilized |
Price
| Product | Size | Price € |
Price $ |
| SB333-1mg | 1 mg | 692 | 802 |
| SB333-5mg | 5 mg | 841 | 981 |
| SB333-10mg | 10 mg | 1088 | 1278 |
For more information about stapled peptides, please visit our dedicated page.
Explore our Stapled Peptide Catalog products. Click HERE to discover additional reference compounds.
An unlabeled version of this peptide is available for applications not requiring fluorescence. Tap the button below to view the non-conjugated product.
Custom Stapled Peptide Services
If your target is not listed, we offer custom stapled peptide design and synthesis. Whether you require sequence optimization, specific modifications, or larger production quantities, our team can support your project. Submit your project details and we will provide a personalized proposal.
References
2008 May 2;378(3):565-80. doi: 10.1016/j.jmb.2008.02.066. Epub 2008 Mar 6.
A cell-penetrating helical peptide as a potential HIV-1 inhibitor
Abstract
The capsid domain of the human immunodeficiency virus type 1 (HIV-1) Gag polyprotein is a critical determinant of virus assembly, and is therefore a potential target for developing drugs for AIDS therapy. Recently, a 12-mer alpha-helical peptide (CAI) was reported to disrupt immature- and mature-like capsid particle assembly in vitro; however, it failed to inhibit HIV-1 in cell culture due to its inability to penetrate cells. The same group reported the X-ray crystal structure of CAI in complex with the C-terminal domain of capsid (C-CA) at a resolution of 1.7 A. Using this structural information, we have utilized a structure-based rational design approach to stabilize the alpha-helical structure of CAI and convert it to a cell-penetrating peptide (CPP). The modified peptide (NYAD-1) showed enhanced alpha-helicity. Experiments with laser scanning confocal microscopy indicated that NYAD-1 penetrated cells and colocalized with the Gag polyprotein during its trafficking to the plasma membrane where virus assembly takes place. NYAD-1 disrupted the assembly of both immature- and mature-like virus particles in cell-free and cell-based in vitro systems. NMR chemical shift perturbation analysis mapped the binding site of NYAD-1 to residues 169-191 of the C-terminal domain of HIV-1 capsid encompassing the hydrophobic cavity and the critical dimerization domain with an improved binding affinity over CAI. Furthermore, experimental data indicate that NYAD-1 most likely targets capsid at a post-entry stage. Most significantly, NYAD-1 inhibited a large panel of HIV-1 isolates in cell culture at low micromolar potency. Our study demonstrates how a structure-based rational design strategy can be used to convert a cell-impermeable peptide to a cell-permeable peptide that displays activity in cell-based assays without compromising its mechanism of action. This proof-of-concept cell-penetrating peptide may aid validation of capsid as an anti-HIV-1 drug target and may help in designing peptidomimetics and small molecule drugs targeted to this protein.
